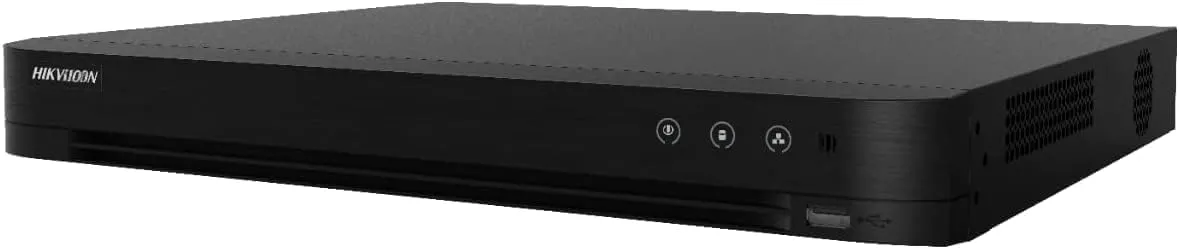

- Support Hik-Connect Phone App
- Supported cameras: up to 6MP IP camera, 4MP TVI/AHD/CVI camera, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- H.265 /H.265/H.264 /H.264 and Dual-Stream Video Compression
- 4K Resolution HDMI Outout, VGA Output up to 1920 x 1080
- Contact Seller for Tech Support and Firmware Upgrade Assistance
Video compression: H.265 Pro /H.265Pro/H.265/H.264 /H.264
Encoding resolution
Main stream: When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video bitrate: 32 Kbps to 6 Mbps
IP video input: 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps.Up to 6 MP resolution. Support H.265 /H.265/H.264 /H.264 IP cameras
Analog video input: 32-ch
HDTVI input: 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7232HQHI-M2/S.
AHD input: 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input: 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDMI output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
SATA: 2 SATA interfaces, up to 10 TB capacity for each disk
USB interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out:N/A (optional to support )
Power supply:12 VDC, 3.3 A
