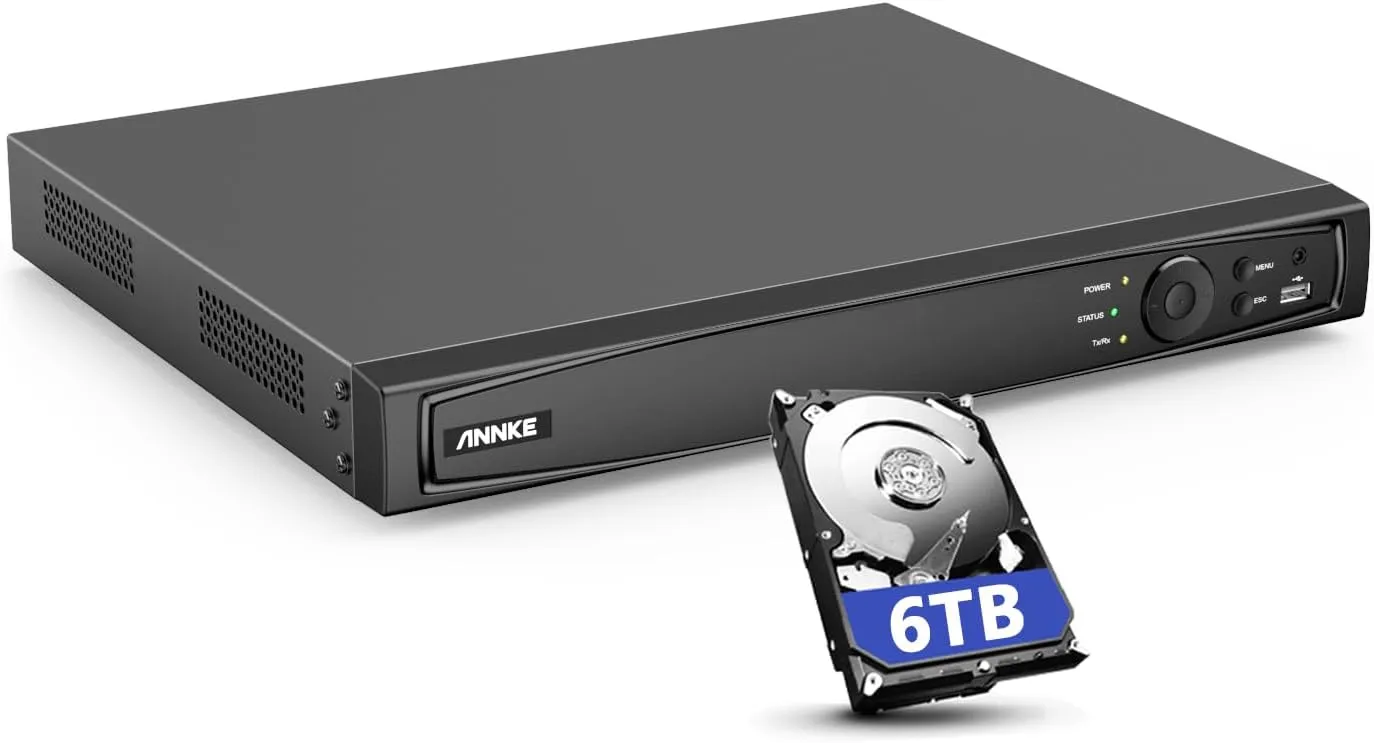

NVR Specification:

· Live view, recording&playback up to 12 MP resolution
· Up to 16 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265 Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· 2 SATA interfaces connectable for recording and backup
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection

Video Compression: H.264 /H.264/H.265/H.265
IP Video Input: 16CH PoE
Video Output: HDMI up to 4K, VGA up to 1080p
Audio Input/Output: 1/1 RCA
Incoming/Outgoing Bandwidth: 160/80 M
Max. Recording Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max. Playback Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max. Playback Channel: 16CH
Max. Playback Capacity: 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
HDD: 2 SATA Interface
HDD Capacity: Up to 8 TB Capacity for each disk
Deep learning: 16-ch Human and vehicle targets detection(Need IP camera support)
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
Smart Event: "Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)"
